Software-Defined Radio (SDR): How It Works, Hardware, Software and Applications

Software-defined radio replaces analog filters, mixers, and demodulators with software running on FPGAs, DSPs, or general-purpose processors. Here is how SDR works, what hardware and software you need, and what you can actually do with a $30 RTL-SDR dongle.

What Is Software-Defined Radio (SDR)?

Software defined radio (SDR) is a type of Radio communications systems where software performs the role normally performed by hardware at some or all layers. All these components such as filters, error-correction blocks, synchronizers, modulators and demodulators can be written down in code. Thus a single hardware platform can enable multiple different communications protocols by loading an application.

The core idea behind SDR isn't really limited to radio at all. That same trick—taking functions that used to be hardwired into circuits and turning them into software—has spread into radar, cars, robotics, and electronic warfare. People sometimes call this broader category Software Defined Systems, or SDS. What holds it all together is reconfigurability: instead of redesigning a board from scratch every time requirements change, engineers just load new software and the device adapts. And there's real money behind that flexibility. The SDR market was worth USD 23.52 billion in 2026 and is expected to hit USD 36.80 billion by 2033, growing at a CAGR of 6.6%, based on market research cited in the source material. So the shift that began with radio is now changing how a whole range of electronic systems get designed, upgraded, and kept relevant over time.

How Does an SDR Work?

A simple SDR system is actually quite generic: a computer, some sound card or another kind of analog-to-digital converter and some type on RF front end sitting in front of it. That front end ads up to the only piece that comes into direct contact with, you guessed it — airwaves. It measures the radio energy picked up by the antenna, filters it and shifts down like an octave above— to a frequency that is actually within range of what can be measured. After that translation the signal enters the digital realm, and everything after this stage is software. Instead of performing those tasks using dedicated analog circuitry — say, filtering or demodulation — the system gives both jobs to a processor and runs them as code. What this does in practice is that the exact same hardware can be completely different radio depending on what software you load, much like how a desktop computer becomes something else by changing applications.

Now, at the center of every SDR is a fast-reconfigurable device: normally either Digital Signal Processor (DSP), Field Programmable Gate Array (FPGA) or General Purpose Processor (GPP). These chips are responsible for what used to be done by analog circuitry, and they run software based filtering algorithms that dynamically determine the radio's operational mode as well its frequency, modulation. Again, because those functions are implemented in code here a lot of traditional hardware disappears from the design: mixers and filters; amplifiers modulators demodulators. In reality, though, an SDR works pretty much like your existing desktop computer: one piece of hardware that can be calle dup as many different things–all depending on the software you download and load to it. Change the program, and that same board can perform a completely different function.

That is how an architecture gives even and SDR such flexibility. A radio is built for a particular modulation scheme in given frequency band so that once it leaves the factory, its capabilities are essentially set. SDRs turns this around: since physical layer functions are defined in software, the same box can be reconfigured out there — usually with just a firmware update or new software load. This is why one hardware platform can support several communication protocols and change with the needs. That is why the same basic silicon surfaces in everything from ham gear to cellular test equipment and military communications systems, even if those applications appear at first glance completely different.

Table 1: Comparison of key specifications comparing the lowest price professional SDR platform with a $30 hobbyist dongle, highlighting how far one has to go in order obtain resolution at even–roughly an full wavelength from these antennas. At the high end, that means you get an ADC for 12 bits worth of instantaneous bandwidth (61.44 MHz) and a pair of MIMO support — meaning it can do tons on spectrum in one shot and significantly more than once signal stream at a time as well! For prices that anyone can cover, the RTL-SDR Blog v4 gives all of that up for a span covering around 500 kHz to greater than 1.7 GHz for less than $30 or about $50 bundled with telescopic antennas. Which is the trade-off that makes it exactly why this became the default way for new folks learning about how SDR works: modest performance, close to zero cost of getting on air.

SDR Hardware: RF Front End, FPGA, SoC and DSP

Most modern SDRs consist of a two-part partnership: an intermediate configurable RF front end and the digital brain ordinarily comprised with either fabric-based circuitry (FPGA) or programmable system-on-chip (SoC). The analog gatekeeper is the front end. Its job is to boost up weak signals that the antenna picks, tune it to narrow piece of spectrum you are interested in, and then convert this slice using an analog-to-digital converter such that all further chain may operate at digital domain. Then the FPGA or SoC steps in and does everything heavy lifting: filtering, decimating, demodulating—most aspects of analog circuitry that can now be implemented digitally. The front end is like the ears and with an FPGA or SoC, we have a brain that can process what was heard. Higher-end designs don't stop there. They frequently insert dedicated signal processors (DSPs) or general-purpose processors in order to perform host-side calculations; these help prevent the FPGA from being overworked while also keeping the system expandable as needs change.

Commercial and military SDRs are not a single blob of hardware plus software. All of them follow a conventional red-black separation style structure, instead. This makes the red side where all of the sensitive work is done: processing confidential information, running cryptographic functions. You will see that the black side is unique, it has composed of all your communication stacks and drivers. Meanwhile, each side relies on its own hardware components for security, compromising one component does not automatically expose the other. That separation is even more important once you're off the ground: some (semi-) space and satellite SDRs use NSA TYPE-1 to secure your link. Rohde & Schwarz also have SDRs in VHF/UHF and HF ranges for commercial application, covering line-of-sight (LOS) or beyond line of sight application. The company offers its CERTIUM product line to be ED-137 compliant and it has over 35 years of experience in the ATC radio market, with more than 60,000 of these radios sold worldwide.

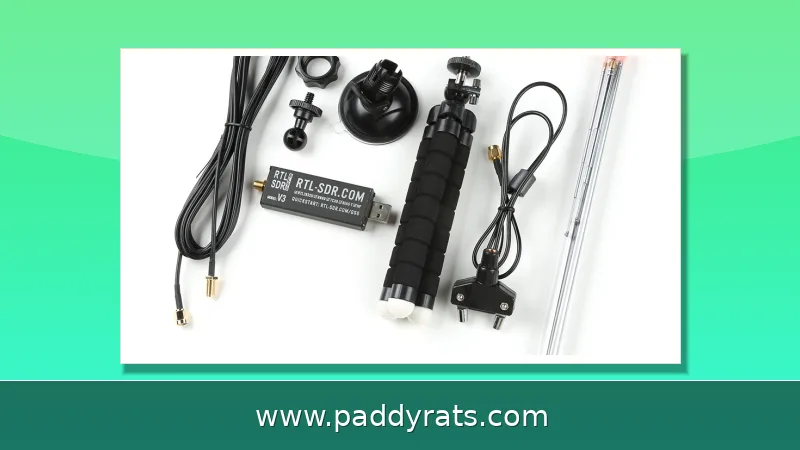

But for hobbyists, the hardware landscape is an entirely different and much less expensive story. Rather than having a rack of equipment, you start with something like the NooElec NESDR Smart v5 bundle or possibly an RTL-SDR Blogv4 — both are little USB dongles that suck "power and data" from your laptop and can be set up in minutes. The ease of entry to SDR is reflected in prices — the lowest four-channel models generally cost under $50, and some buyers have even reported acquiring one for as little as $18, allowing experimentation with radio signals at a very inexpensive headphoned-level. Unlike these cheap USB sticks, standalone units typically cost more than that but tend to make real advancements for the extra cash — better isolation from interference and honed filtering in addition as a transmit ability that's impossible with receive-only dongles. In other words, the dongle is an inexpensive entry point to SDR and you really move up in values when you want cleaner reception or to get on air with your own stand-alone box.

It does not matter as much the choice of radio, but antenna. 72 divided by frequency in MHz is the dipole side length in meters, followed with vertical polarization for a useful rule of thumb. It has a handful of different functions, and because no one antenna will account for every bandwidth, most enthuses keep about two to three on hand.

SDR Software: SDR#, SDR++, SCA and Drivers

The software layer is where SDR earns its name. SDR# (SDRSharp.exe) is the classic Windows choice, popular for its simple workflow: select the RTL-SDR USB source, set RF gain around 40 dB, select WFM, and set the step to 100 kHz to start listening to FM radio. SDR++ is the cross-platform alternative, and it runs on a Windows 10 laptop as well as an Asus Chromebook with a Debian Linux sandbox.

Beyond general receivers, there is a deep ecosystem of specialized tools. rtl_433 decodes wireless temperature sensors, while dump1090 decodes aircraft position signals from ADS-B transponders. On the standards side, the Software Communications Architecture (SCA) was developed by the US military as part of the JTRS program and has been declared a quasi-standard. Other names you will encounter include HPSDR, Linrad, DSP-10, and virtual instruments or software-defined testers used in lab environments.

Linux users should expect a little more setup work. You may need to enable USB settings and manually install drivers if the dongle is not recognized. A reliable sequence is to start SDR++ first, then plug in the receiver, so the application can detect the device as it enumerates. Once drivers are in place, the same dongle works across Windows, Linux, and macOS with the right build.

What Can You Do With an SDR?

The practical answer is: far more than most people expect from a $30 dongle. You can talk securely over a distance, receive broadcast and amateur radio, set up a DRM transmitter, and even build a GSM network. SDR also supports spectrum examination, interference detection, frequency distribution, repeater testing, and identifying spectrum intruders.

For a beginner, the classic first project is FM broadcast reception, followed by decoding local aircraft and weather data. From there, the natural progression is exploring trunked radio systems, satellite signals, and digital voice modes. Each of these uses the same hardware with a different software decoder, which is the core promise of the technology.

Getting started is genuinely a weekend project. Buy a suitable SDR such as the NooElec NESDR Smart v5 bundle or the RTL-SDR Blog v4, install the drivers, plug in the dongle, and install SDR# or SDR++. Then add rtl_433 for sensors and dump1090 for aircraft. Within an afternoon you will have a working receiver that covers everything from FM radio to aircraft tracking.

SDR Benefits and Trade-Offs

The benefits of SDR over a conventional radio are substantial. You can receive and transmit various modulation methods using a common set of hardware, alter functionality by downloading new software, adaptively choose operating frequency and mode, and add features without major new hardware. Development cost and time to market drop because engineers integrate software blocks rather than redesigning circuits, and the innovation cycle shortens accordingly.

SDR also protects against hardware obsolescence. In-field updates and upgrades arrive via software download, so a deployed radio does not become obsolete the moment a new standard appears. A single hardware platform can support multiple communications protocols and multiple application domains, and development can start on personal computers or commercial off-the-shelf (COTS) platforms. That COTS ecosystem simplifies software development considerably.

The trade-offs are real, though. Standalone devices often cost more than USB dongles, Chromebooks are not especially powerful and may struggle to process data in real time, and no single antenna covers all bandwidth. Traditional testers are often obsolete by the time they reach market, and not being constrained to the antenna port, known as black-box testing, opens new testing methods but also means SDR measurement data can deviate from VNA data. Buyers should match the hardware to the job rather than assume one device does everything.

Why Do We Need Software-Defined Radios?

The core reason is adaptability. Modern communications standards change faster than hardware design cycles, and a radio that cannot be updated in the field becomes a liability. SDR lets operators comply with common military and civil communications standards while keeping the door open for future ones, all on the same physical platform.

Cost and logistics matter too. A single SDR platform can replace several single-purpose radios, which reduces inventory, training, and maintenance burdens. For military users, red-black separation and TYPE-1 encryption provide the security posture required for classified traffic. For civilians, the same architecture delivers inexpensive receivers that punch far above their price class.

There is also a testing angle. Because SDR is not constrained to the antenna port, engineers can inject and observe signals in ways that traditional black-box testers cannot. That flexibility is why SDR has moved from a niche research topic to the default architecture for new radio designs across commercial, amateur, and defense applications.

Frequently Asked Questions

What is software-defined radio (SDR)?

SDR is a radio communication system where some or all physical layer functions are defined in software instead of analog hardware. Filters, error correction, synchronizers, modulators and demodulators, and frequency tuners can be written in software, letting one hardware platform support multiple protocols without a circuit redesign.

How does a software-defined radio work?

A basic SDR system consists of a computer with a sound card or other analog-to-digital converter, preceded by an RF front end. High-speed reprogrammable devices such as DSPs, FPGAs, or general purpose processors run software that configures operating modes, frequency, and modulation, replacing analog mixers, filters, and demodulators.

What are the benefits of SDR over a normal radio?

Benefits include receiving and transmitting various modulation methods using a common set of hardware, altering functionality by downloading new software, adaptively choosing operating frequency and mode, and adding features without major new hardware. It also reduces development cost and time to market and protects against hardware obsolescence.

What can you do with a software-defined radio?

You can talk securely over a distance, receive broadcast and amateur radio, set up a DRM transmitter, and build a GSM network. SDR also supports spectrum examination, interference detection, frequency distribution, repeater testing, and identifying spectrum intruders, all with inexpensive hardware like an RTL-SDR dongle.
