Sub-6GHz Suppression: Interference Mitigation, Filters and Antenna Design
Sub-6GHz suppression is the engineering discipline of keeping 5G FR1 radios clean, from ferrite beads on an LNA rail to metamaterial decoupling in MIMO arrays. Here is what causes the interference and what actually fixes it.
What Is Sub-6GHz and Why Does Suppression Matter?
Sub-6GHz suppressing schematic includes interference mitigation, suppression for out-of-band gain or mutual coupling and EMI reduction on 5G Sub-6 GHz (FR1) receiver architectures. Since 3GPP defines Sub-6 GHz as being the frequency range of 410 MHz to14500MHz, it makes perfect sense that band would also be calledSub-7GHz; FR1 (in) Normally, readers searching for how to put down Sub-6GHz noise are looking four things: what is the cause, what's the mitigation method and which device you will use plus measured result. I use that sequence on the bench to reduce BOM and unnecessary time swapping parts when you could just identify where the leakage path is first.
The physics here is what makes suppression non-negotiable. Take Friis free-space loss over 1 km: at 900 MHz it sits at 91.5 dB, at 3600 MHz it's 103.6 dB, and by 28 GHz it has climbed to 121.4 dB—a 30 dB spread between the low and high ends. At 6 GHz the wavelength works out to 5 cm, which happens to be about the typical minimum wall dimension, meaning apertures and seams that looked electrically small down at cellular frequencies suddenly behave like efficient radiators. Rain doesn't help either: at 50 mm/h below 30 GHz you're looking at 10 dB/km, compared with just 0.03 dB/km at 3.6 GHz. Gas attenuation runs 0.05 dB/km at 28 GHz but jumps to 20 dB/km at 60 GHz, and ITU-R P.833-9 puts woodland attenuation at 0.4 dB/m at 2 GHz, rising to 6 dB/m at 30 GHz. Then there's diffraction—6 m out from a wedge, loss at 20 GHz is 17 dB higher than at 1 GHz.
How Does Sub-6GHz 5G Compare With mmWave and 6 GHz Wi-Fi?
Most Sub-6GHz design choices come down to the trade-off between coverage and throughput. Sub-6 GHz 5G typically gives you somewhere between 100 Mbps and 700 Mbps, with coverage stretching over several kilometers and decent building penetration. mmWave, on the other hand, can hit up to 1 Gbps under ideal conditions, but its line-of-sight range is only around 500 m, and it struggles indoors. The table below lines up all three air interfaces, and the numbers come from vendors and regulators rather than marketing peaks.
| Interface | Frequency range | Typical throughput | Coverage / penetration |
|---|---|---|---|
| Sub-6 GHz 5G (FR1) | 410 MHz - 7125 MHz | 100-700 Mbps | Up to several km, good building penetration |
| mmWave (FR2) | 24250 - 52600 MHz | Up to 1 Gbps ideal | About 500 m line-of-sight, poor indoors |
| 6 GHz Wi-Fi | 5925 - 7125 MHz (1200 MHz) | 9.6 Gbps theoretical | Indoor, 59 channels of 20 MHz |
The 6 GHz Wi-Fi band is worth a closer look, since it sits right next to the Sub-6 GHz 5G uplink and downlink allocations. It covers 5.925–7.125 GHz—that's 1200 MHz of spectrum, or 59 channels at 20 MHz each—and tops out at a theoretical 9.6 Gbps. The FCC has carved it into four sub-bands: U-NII-5, U-NII-6, U-NII-7, and U-NII-8. In the EU, the allowed range is 5925–6425 MHz (5945–6425 MHz in practice), while the FCC lets very low power unlicensed devices operate in U-NII-5 (5.925–6.425 GHz) and U-NII-7 (6.525–6.875 GHz), indoors or outdoors, with no frequency coordination required. That kind of regulatory openness is precisely why coexistence filtering carries more weight today than it did five years ago.
Internal Coupling: How Wi-Fi 5 GHz Degrades 5G Band n79
Internal coupling is the most prevalent source of Sub-6GHz interference within a handset or CPE, and can be difficult to distinguish as an external vs. internal issue.
Wi-Fi 5 GHz signals couple to the LNA power lines and over RF-IC local oscillator (LO) signal or supply line into 5G RF circuitry. Block error rate for 5G band n79 is worse with Wi-Fi at 2.4 GHz than without, but there are no issue when Wi-Fi operates on the actual used channel in.. Importantly, measurements reveal no noise outside the Wi-Fi 5 GHz band and zero BLER degradation from external 5 GHz signals indicating internal leakage rather than re-radiation (over-the-air).That distinction changes the fix. If the energy were coming in via antenna, you'd be grabbing for a front-end filter or better duplexer; since it arrives on the power rail, you remedy lives across both the DC and LO paths. The quickest validation, in my personal bring-up work is indeed to turn off Wi-Fi 5 GHz transmitter while keeping the radio otherwise identical and see if band n79 BLER recovers. That's your answer when it does, and the near-field probe shows that coupling following the supply trace rather than the antenna. Both band n77 and band n79 are affected since the uplink allocations reside near 5 GHz Wi-Fi allocation.
Filter and Ferrite Bead Countermeasures for LNA and RF-IC Paths
The countermeasure set is small, and well understood: insert filters at the LNA or RF-IC inputs. Tuned for 5 GHz to suppress the conducted path, ferrite beads on LNA supply line (Vcc) of BLF03VK series do not disturb DC bias. An LC low-pass filter with a cutoff frequency of 5 GHz removes noise on the reference path outside an externally-driven LO. If the LO is internal, then doing similar with a 5 GHz-tuned ferrite bead on the LO power supply will do. I think of the ferrite bead as a frequency-selective resistor: it needs to be high impedance for 5 GHz yet low-impedance at DC while providing enough rated current coverage beyond the LNA bias.
| Coupling path | Countermeasure | Example part / topology |
|---|---|---|
| LNA supply (Vcc) | 5 GHz-tuned ferrite bead | BLF03VK series |
| External LO | LC low-pass filter above 5 GHz | Discrete L and C at LO input |
| Internal LO supply | 5 GHz-tuned ferrite bead | Bead on LO power rail |
| LNA / RF-IC input | Input filter | Band-selective filter at input |
Placement matters just as much as which part you pick. Stick a bead after a long shared trace and it'll still radiate straight into the LNA input, so I keep it within a few millimeters of the device pin and make sure the return path has solid ground. LC low-pass filters are the same story — they need their own quiet ground reference, and sharing a via with a switching regulator basically cancels out the whole point. After every change, I go back and re-measure BLER on band n79 with Wi-Fi 5 GHz running, because what actually counts isn't insertion loss on a network analyzer — it's whether the error rate drops back to the baseline I measured with Wi-Fi turned off.

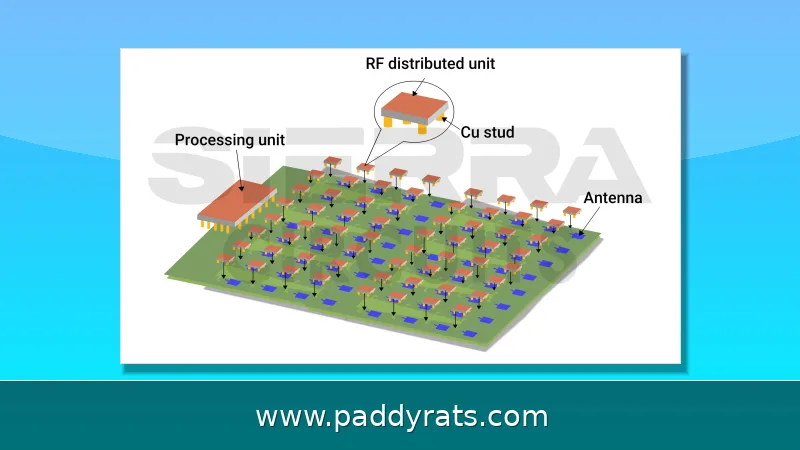

Out-of-Band Gain Suppression in Filtering Antenna Arrays
On the antenna side, suppression means stopping the array from amplifying or radiating energy outside its intended band. A broadband filtering antenna array for Sub-6 GHz base stations achieves out-of-band gain suppression greater than 16 dBi, which matters because a base-station array with high gain in-band will happily radiate harmonics and adjacent-band noise if the feed network does not reject them. A high-selectivity planar filtenna achieves 3.5 dBi gain with a radiation null at 4 GHz and wide out-of-band suppression up to the third harmonic. The radiation null is the elegant part: instead of adding a filter after the radiator, the filtenna integrates the rejection into the radiating structure itself.
For wideband front ends, a compact UWB bandpass filter using double-coupled lines and two metamaterial SRR cells covers 2.8 GHz to 9.6 GHz with a fractional bandwidth of 109.7%. That single component can sit ahead of a multiband Sub-6 GHz chain and reject the Wi-Fi 5 GHz and 6 GHz energy that would otherwise reach the LNA. In practice I compare three numbers before choosing: in-band insertion loss, rejection at the specific interferer frequency, and the harmonic suppression floor. A filter that is excellent at 5.8 GHz but leaks at 11.6 GHz will still fail a regulatory spurious emission test.
Mutual Coupling Suppression with Metamaterials and Metasurfaces
Mutual coupling suppression is the MIMO-specific problem: when elements sit closer than half a wavelength, surface currents on the ground plane and substrate couple energy between ports, raising the envelope correlation coefficient and degrading throughput even when each element is individually well matched. Metamaterial structures create a band gap at the required frequency to suppress those surface currents. A double-sided decoupling metasurface (DSDM) reduces coupling between closely spaced circularly polarized MIMO elements, and a metamaterial isolator built from double-negative (DNG) unit cells improves isolation in the Sub-6 GHz band.
What I like about the metasurface approach is that it is a layout change rather than a component addition, so it does not consume extra BOM cost or insertion loss. The trade-off is simulation effort: DNG unit cells must be characterized in the actual stack-up, because the effective permeability depends on the dielectric thickness and the unit cell periodicity. When a design has to fit many Sub-6 GHz elements into a small aperture, I would rather spend a week tuning a decoupling metasurface than accept a 3 dB isolation penalty that shows up as reduced MIMO rank in the field.
EMI Suppression in Folded PCB States: 37.8% Interference Power Reduction
Folding states are an underrated variable in Sub-6GHz suppression. A proposed PCB method quantifies EMI suppression in folding states and achieves a 37.8% interference power reduction across Sub-6GHz and mmWave. The mechanism is straightforward once you see it: when a board folds, ground stitching vias and shield cans shift relative to each other, slot antennas form along the fold line, and the coupling path between the Wi-Fi radio and the cellular front end changes. A suppression scheme validated only in the flat state can look excellent on the bench and fail in the folded product configuration.
My takeaway from that work is procedural. Characterize the folded state as its own EMC scenario, not a corner case. Measure interference power with the board flat, partially folded, and fully folded, and use the worst case for the design margin. Because the reduction reported is 37.8% in interference power rather than a dB figure, it is worth converting carefully: a 37.8% power reduction is roughly 2.1 dB, which is meaningful but not a substitute for filtering at the LNA. Treat folding-state validation as a complement to the ferrite bead and filter work, not a replacement.
Regulatory and Market Context for Sub-6GHz Deployments
Regulatory timing shapes what designers must suppress. Wi-Fi 6E access points launched after FCC and Wi-Fi Alliance approval, and 6 GHz supported access points are expected to reach 2.3 billion units, of which 350 million are Wi-Fi 6E capable. More than 400 products have been Wi-Fi 6E certified, and IDC reported Wi-Fi 6 APs exceeding 76% of shipments in a given period. Those numbers matter to RF engineers because every one of those access points is a potential in-band neighbor to a Sub-6 GHz 5G receiver, and the FCC's very low power unlicensed rules for U-NII-5 and U-NII-7 assume the equipment can tolerate the resulting noise floor.
Deployment reality reinforces the point. South Africa's 5G is largely Sub-6GHz, especially in the 3.5 GHz bands, with MTN and Vodacom expanding coverage; over half the population had 5G access as of late 2024. Boosters support 700-2600 MHz for 4G and 3.5 GHz for 5G Sub-6, while mmWave boosters are not realistic today. When the access network is Sub-6 GHz and the in-home interference source is 5 GHz or 6 GHz Wi-Fi, suppression stops being a lab exercise and becomes the difference between a usable link and a dropped session.
Frequently Asked Questions
What causes Sub-6GHz interference in 5G devices?
Internal coupling is a common cause. When Wi-Fi 5 GHz operates alongside 5G band n79, Wi-Fi signals leak into the 5G RF circuitry through LNA power lines and RF-IC LO signal or supply lines, raising the block error rate. Measurements show no noise outside the Wi-Fi 5 GHz band, confirming internal leakage rather than external radiation.
How do you suppress Sub-6GHz interference?
Insert filters at the LNA or RF-IC inputs. Add ferrite beads on the LNA supply line, such as the BLF03VK series tuned for 5 GHz. When the LO is external, use an LC low-pass filter attenuating signals above 5 GHz; if the LO is internal, add a 5 GHz-tuned ferrite bead on the LO power supply.
What is out-of-band suppression in Sub-6GHz antenna arrays?
A broadband filtering antenna array for Sub-6 GHz base stations achieves out-of-band gain suppression greater than 16 dBi. A high-selectivity planar filtenna reaches 3.5 dBi gain with a radiation null at 4 GHz and wide out-of-band suppression up to the third harmonic, integrating rejection into the radiator itself.
How is mutual coupling suppressed in Sub-6GHz MIMO antennas?
Metamaterial structures create a band gap at the required frequency to suppress surface currents. A double-sided decoupling metasurface reduces mutual coupling between closely spaced circularly polarized MIMO elements, and a metamaterial isolator with double-negative unit cells improves isolation in the Sub-6 GHz band.
